Label Cutting Machines

Leading Wholesaler, Distributor, Trader and Importer of Flatbed Label Cutting Machine [ A3 Plus ], Flatebed LABEL CUTTER (Tablet Die Cutting Machine), Label Cutter (SERVO Motor - Speed 1500mm/s.), Label Cutter (STEP Motor - Speed 800mm/s.), Sticker Half Cutter (SERVO Motor - Speed 1500mm/s) and Sticker Half Cutter (STEP Motor - 800mm/s) from Bilaspur.

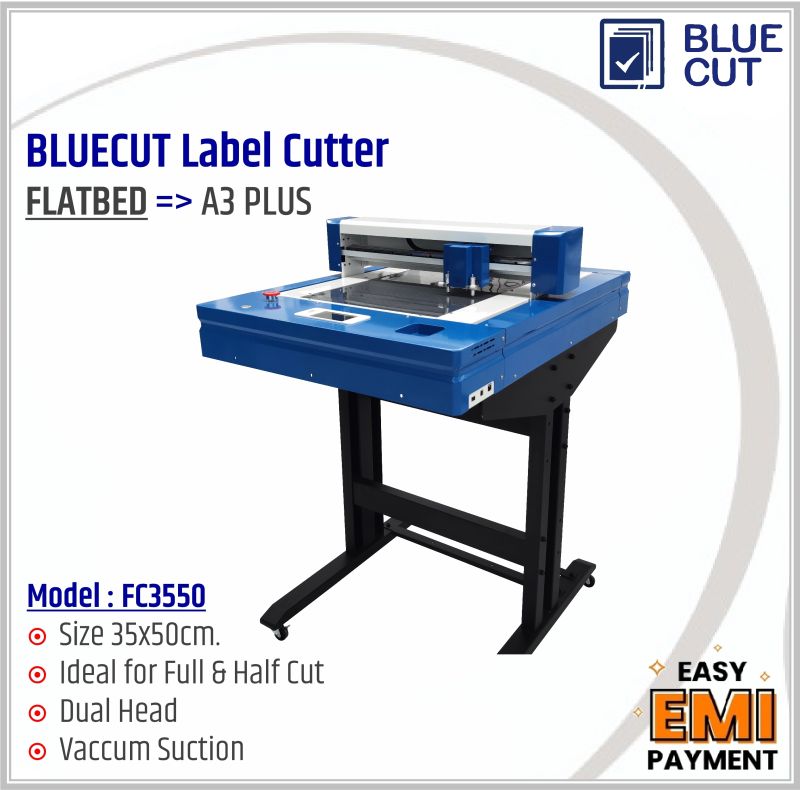

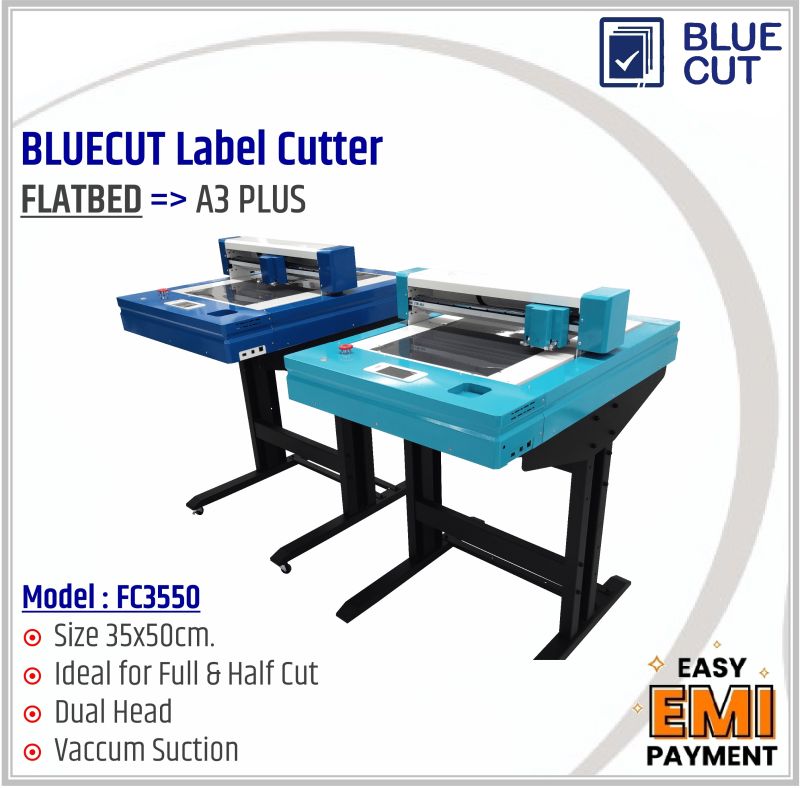

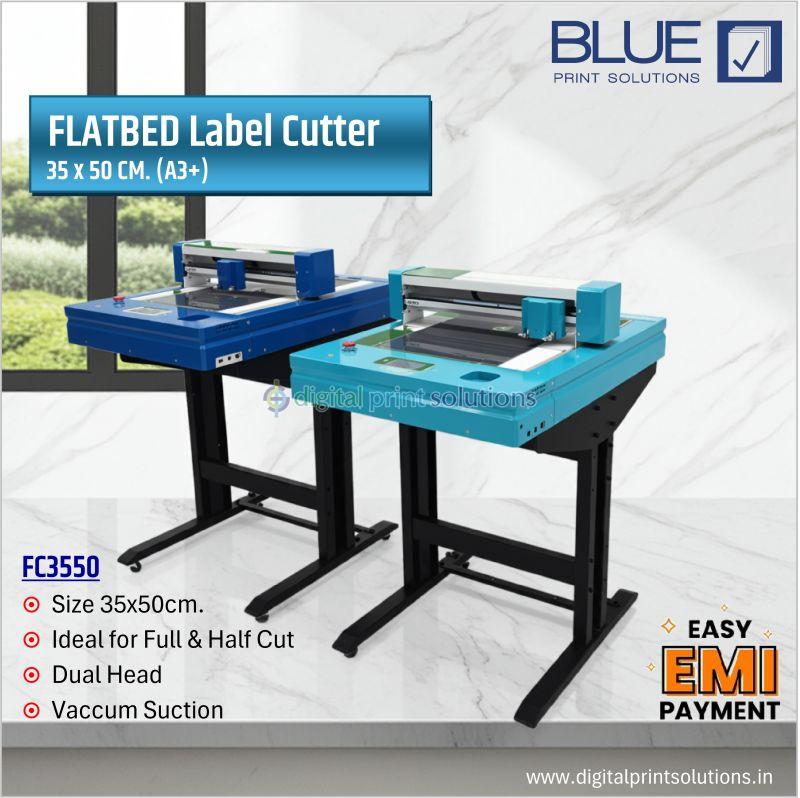

INR 1.70 Lac - 1.80 Lac / piece

1 piece (MOQ)

Business Type Supplier, Trader, Distributor
Model FC3550E
Motor Servo Motor / Stepper Motor
Cutting area 400 x 670mm.
Cutting speed Straight line 1000mm/s Curve 800mm/s
Cutting thickness Upto 1mm
Transmission Interface USB / Udisk / WiFi (Optional)
Body memory 256M
Command system HP-GL compatible
Mechanical resolution 0.05mm.
Cutting material PP paper, Photo paper, Car stickers, Light film, Matte film, Reflective film, Floor film, Cardboard
Fixing method Double frame adhesive / vaccum adsorption
Pen/knife type Ordinary signature pen, Oil based pen, Ball point pen, Special black steel knives
Working characteristics Computer operation, Faster data transfer speed, Continuously cutting
Control panel HD Touch Screen
Operating voltage power AC 220V +-10% / 50 Hz
Dimension 1114 x 956 x 710mm.
Shipping weight 130 Kg
Product Code FC3550E
Port Pendra Road, BILASPUR
Payment Terms T/T
Delivery Time One week
Packaging Details Packed in international standard packaging

Click to view more

Preferred Buyer From

Location Anywhere in India

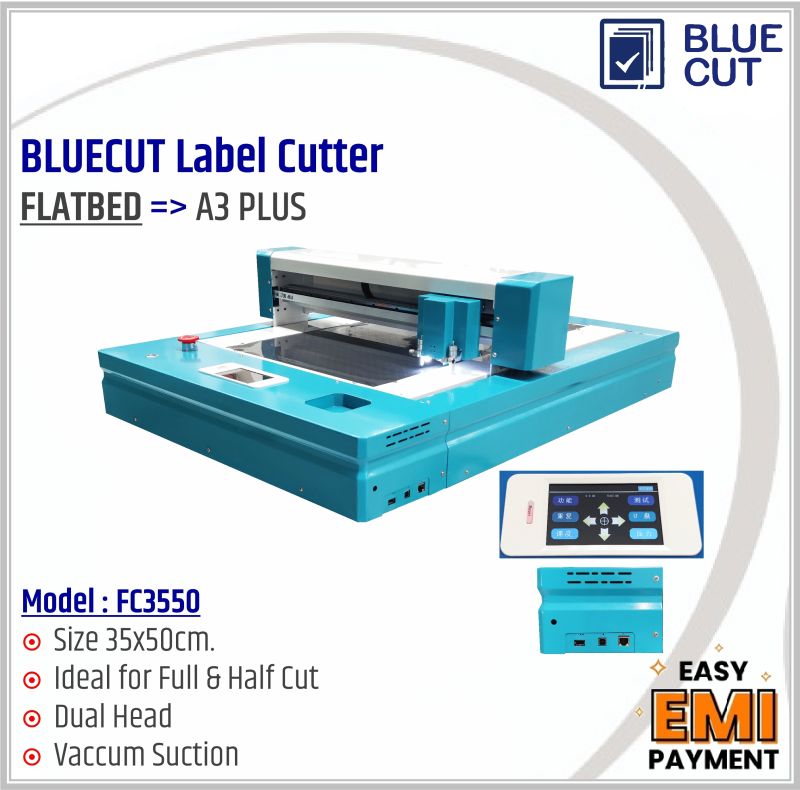

BLUECUT A3 Plus table top intelligent tablet die-cutting machine FC3550E is an intelligent cutting equipment that can complete cutting, drawing, pattern annotation, half cutting and full cutting in one go. It applied in the small batch production of materials such as aluminum film, copper film, copper film, shielding material, insulation material, optical material, conductive tape, special adhesive tape, self adhesive tape, PVC TPU cardboard, copper sheet paper etc. in the electronic industry.

This A3 Plus Table top Flatbed Label Die Cutting machine adopting imported linear guide rail transmission, has fast speed, high accuracy, low sound and stable quality. The independently developed ARM control system has excellent engraving and cutting effect. It can reach the fastest cutting speed upto 1000mm/s.

This machine comprehensively expand various transmission interfaces, USB, USB flash drives (optional WiFi) to create efficient cutting experiences in different scenarios. The LCD high definition touch screen makes the field of view more beautiful and the control more convenient. This A3 plus Flatbed label dies cutter is compatible with vector files such as PLT, EPS, DXF, AI etc. widely used in clothing, shoemaking, luggage and handbags, laser die drawing, lifhting drawing and cutting industries such as Advertising gifts, stickers, color box, packaging and electronics.

Read More...


Yes! I am interested

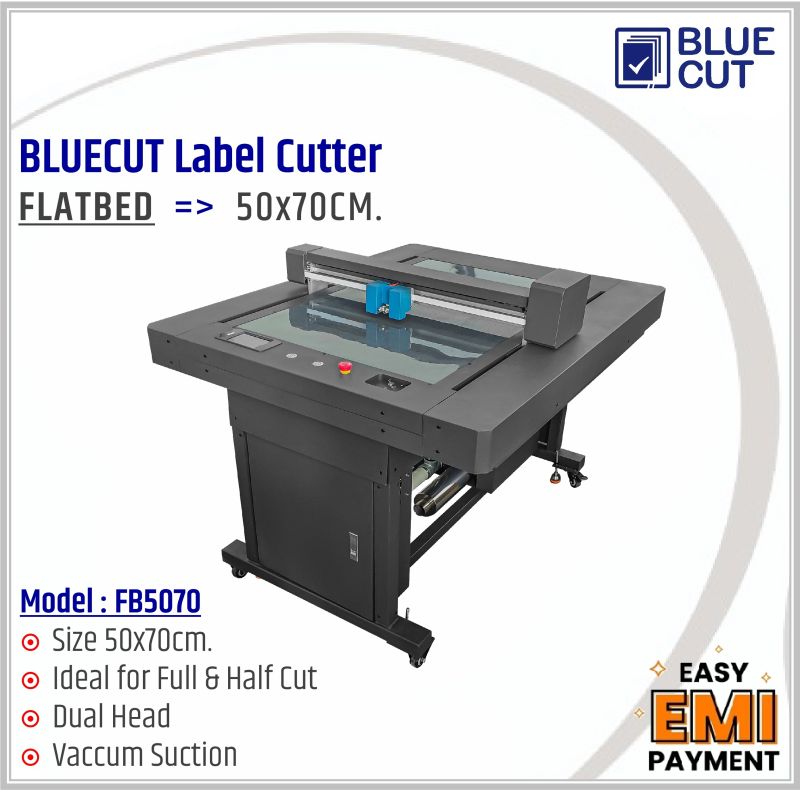

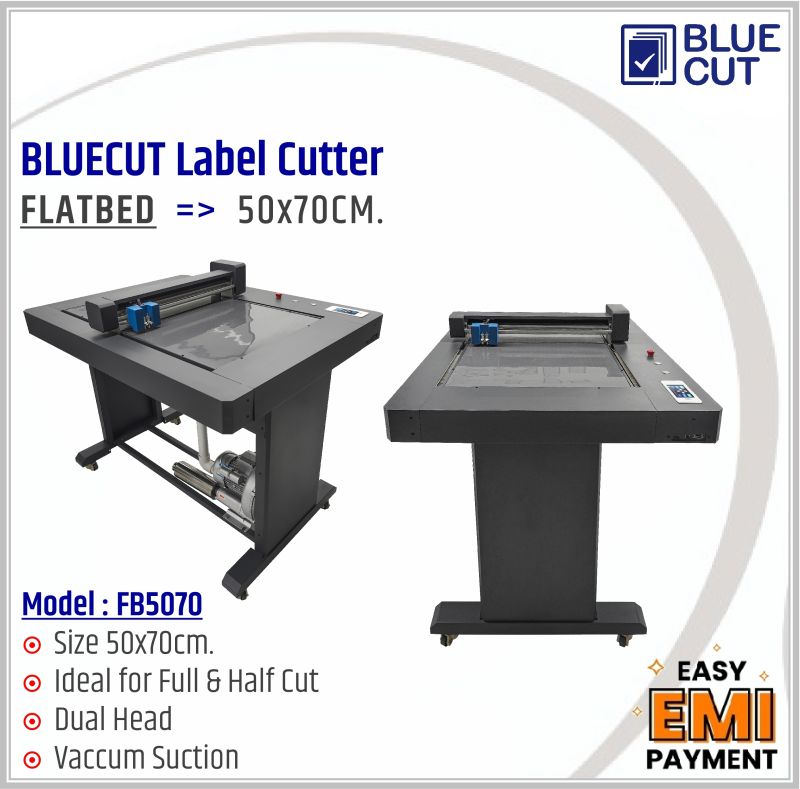

INR 2.60 Lac - 2.75 Lac / piece

1 piece (MOQ)

Business Type Supplier, Trader, Distributor
Model Number FB5070
Cutting speed Straight Line 1000mm/s Curve 800mm/s
Motor Servo Motor / Step Motor
Cutting area 700*500mm.
Cutting thickness Upto 1mm.
Mechanical precision 0.05mm.
Software resolution 0.025mm., 0.01mm., 0.1mm. optional
Cutting method Physical half knife and full knife cutting
Cutting material PP paper, Photo paper, Car stickers, Light Matte Reflective Floor film, Cardboard etc.
Pen knife type Signature pen, Oil based pen, Ballpoint pen, Special black steel knife
Control pannel Touch display
Fixing method Double frame adhesive / Vaccum adsorption
Transmission interface USB, Udisk, optional WiFi
Command system HP-GL compatible format
Memory 256M
Operating voltage AC 220V/50Hz
Product dimension 1270*1070*1260mm.
Shipping weight 245kg.
PRODUCT CATLOG View
Product Code FB5070
Port Pendra Road, BILASPUR
Payment Terms T/T
Delivery Time One week
Packaging Details Packed in International standard packaging

Click to view more

Preferred Buyer From

Location Anywhere in India

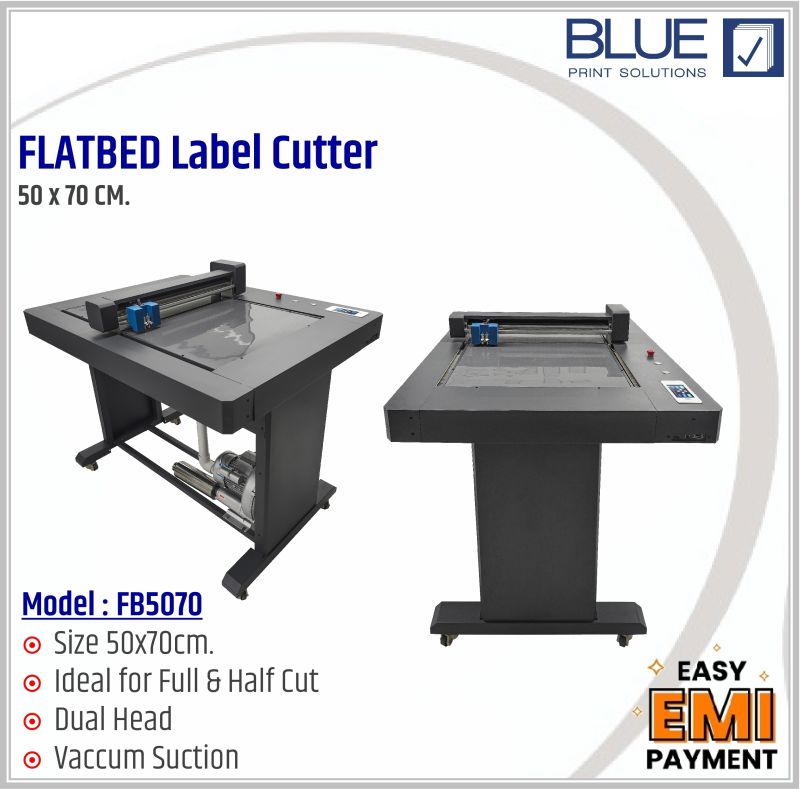

BLUECUT Intelligent high efficiency FLATBED TABLET DIE CUTTING MACHINE (LABEL CUTTER) FB5070 is an intelligent cutting equipment that can complete cutting, drawing, pattern annotation, indentation, half cutting and full cutting in one go. Applied in the small batch production of materials such as aluminum film, copper film, shielding material, insulation material, optical material, conductive tape, special adhesive tape, self adhesive tape, PVC TPU cardboard, copper sheet paper etc. in the industry.

It's adopting imported linear guide rail transmission and has FAST SPEED, HIGH ACCURACY, LOW SOUND & stable quality. The independently developed ARM control system has excellent engraving and cutting effects. The fastest cutting speed can reach 1000mm./s. Comprehensively expand various transmission interfaces, USB, USB Flash Drives (Option WiFi) to create efficient cutting experiences in different scenarios. Computer operation and cutting are performed at the same time, data transmission is completed quickly and can be used continuously.


This machine equipped with LCD high definition touch screen makes the field of wiew more beautiful and the control more convenient. This machine is compatible with vector files such as PLT, EPS, DXF, AI etc. widely used in clothing, shoemaking, luggate and handbags, laser die drawing, lighting drawing and cutting in dustries such as advertising fifts, stickers, colour box packaging and electronics.

Read More...


Yes! I am interested

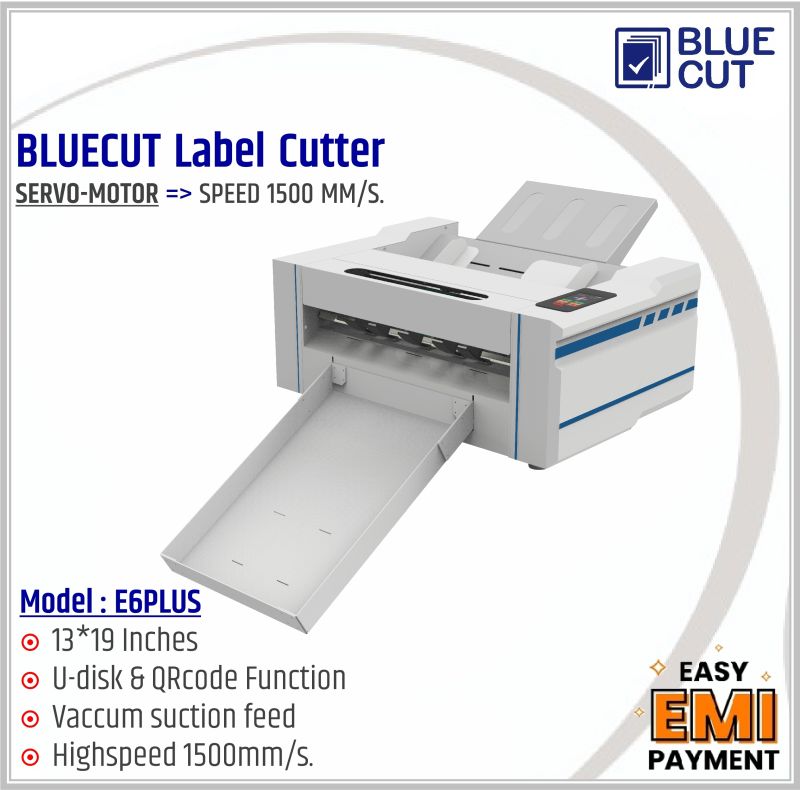

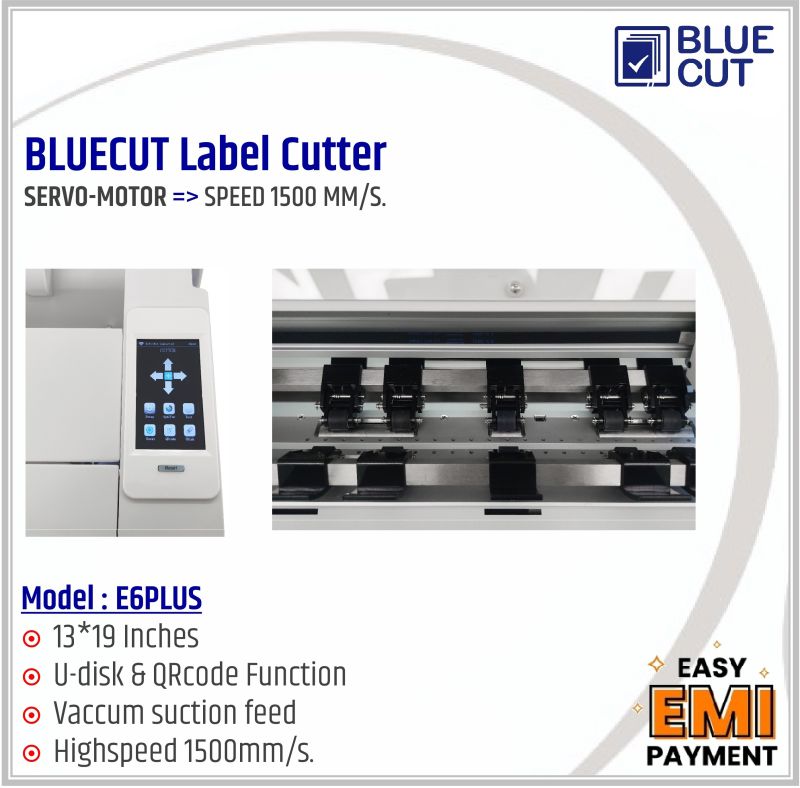

INR 2.15 Lac - 2.20 Lac / piece

1 piece (MOQ)

Business Type Supplier, Trader, Distributor, Importer
Brand Name BLUECUT
Model Number E6 PLUS
Max Cutting Speed 1500mm/s SERVO System
Max Cutting Area 483*330mm (13*19 Inches)
Drive Motor X&Y DC High Power SERVO Motor
Media Hold Method Double pinch roller, Vaccum suction
Main Board High speed CPU, Optimal SERVO system
Nos of Cutting Head Single Cutting Head
Camera positioning speed 4s
Accuracy 0.025mm.
Cutting Force 5-1000g (Adjustable)
Interface USB/Udisk/Eathernetport/Wifi (Optional)
Control Pannel 4.3inch Full Colourful Touch Screen
Media way Auto feeder
Cutting Media Types Self adhesive, Cardboard, Coated paper, PVC, PET, Kraft paper etc.
Cutting Method Kiss cut, Full cut, Dotted cut, Creasing and drawing
Gross weight 66kg.
Package Dimention 880*720*580mm.
Working Power 150 W
PRODUCT CATLOG View
Port Pendra Road, Bilaspur
Payment Terms T/T
Delivery Time One Week
Packaging Details Packed in International Standard Packaging

Click to view more

Preferred Buyer From

Location Anywhere in India

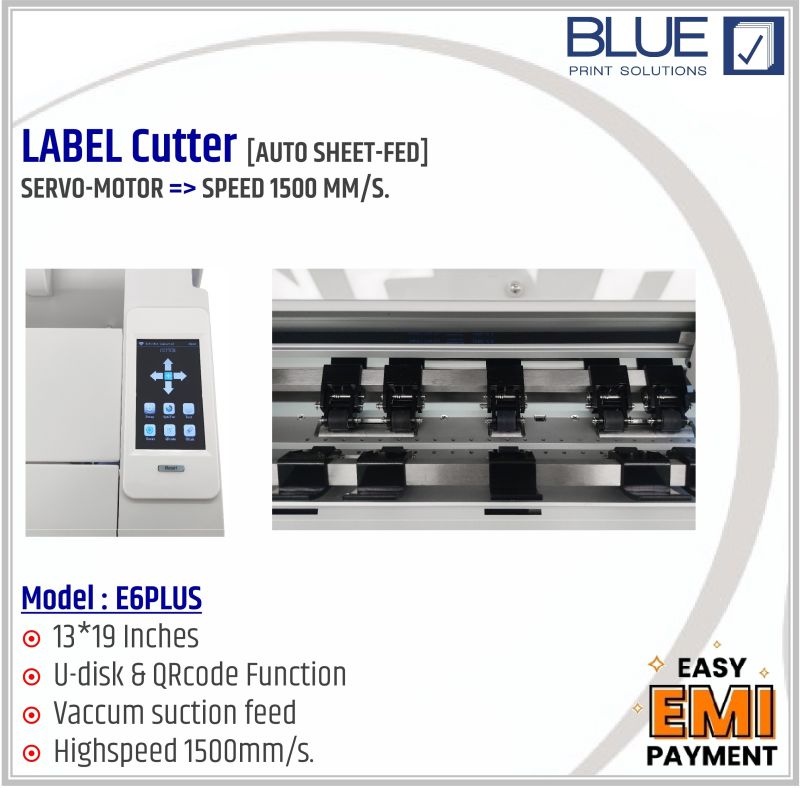

BLUECUT SERVO MOTOR LABEL CUTTER comes with double pinch roller & vaccum suction for holding sheet, ensure the good cutting performance with twice cutting speed. It's have QR code working system for positioning, cut a mixed different files continuously. The 4.3inches full colourful touch screen which is smooth clock performance. The CCD camera scanning makes it more sensitive for QR code and mark positioning. Just a one key to calibrate the offset of camera. It can autofeed sheet in different size continously A4, A3, A3 Plus and customised size. You can put 200 sheets at a time in paper feeding tray. One cutting file can repeat 2000 times continuously with repeat function. It can be connect with the PC with Ethernet Port, USB, Udisk, WiFi. Heavy duty rubber feeding roller with big power which can feed thicker sheet smoothly. Adobe illustrator, Coreldraw plug-in, Signmaster, Surecut software are compatible software.

Read More...


Yes! I am interested

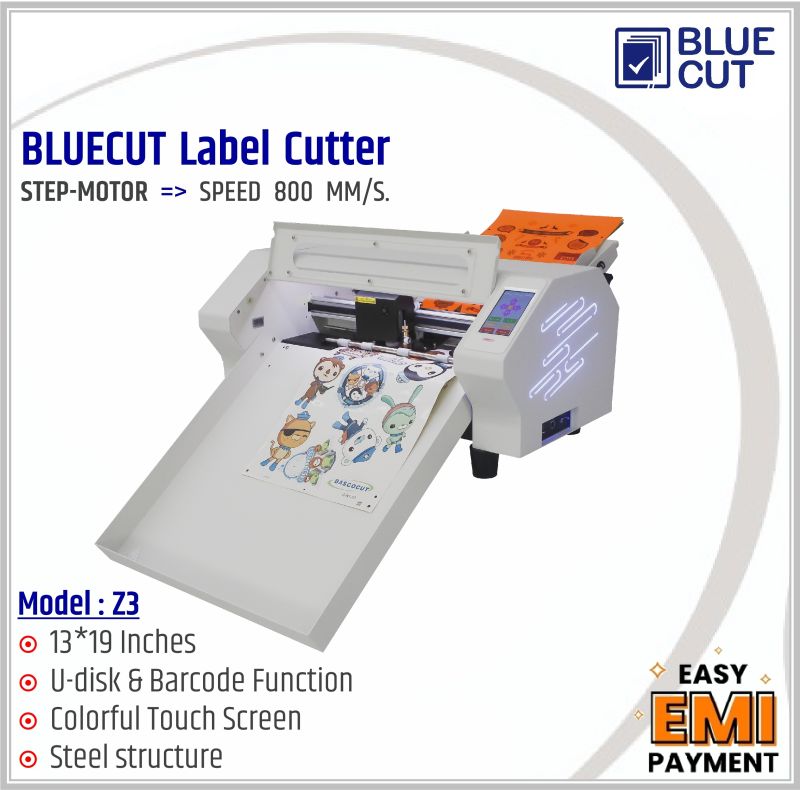

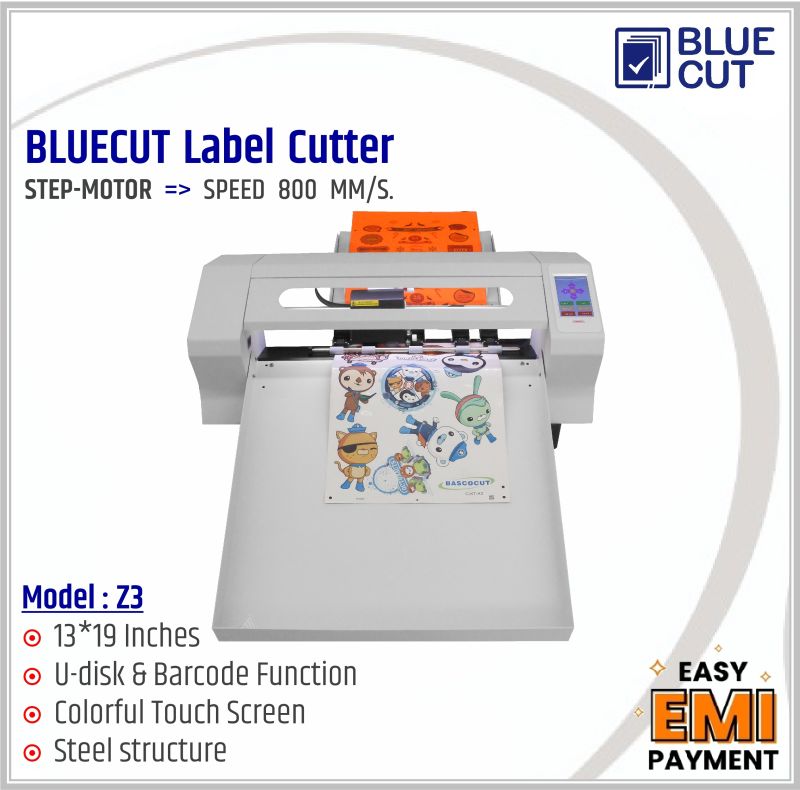

INR 1.30 Lac - 1.35 Lac / piece

1 Unit (MOQ)

Business Type Supplier, Trader, Distributor, Importer
Brand Name BLUECUT
Model Number Z3
Maximum Cutting Speed 800mm/s STEP MOTOR System
Maximum Cutting Area 483*330mm (13*19 Inches)
Drive Motor X&Y DC STEP Motor
Media Hold Method Double Pinch Roller
Main Board 32-bit ARM7 CPU, 128MB, High speed catch memory
Cutting Force 10-1000g (Adjustable)
Accuracy 0.025mm.
Cutting Media Types Self adhesive, Cardboard, Coated paper, PVC, PET, Kraft paper etc.
Media Way Auto Feeder
Automation Grade Automatic
Interface USB / U Disk / Serial Port
Cutting Type Kiss cut and Full Cut
Control Pannel 4.3inch Full Colourful Touch Screen
Maximum repeat of files 2000 Times
Feed Tray Capacity 100 Sheets
Gross Weight 33kg.
Package Dimension 810*700*360mm.
Working Power 150 W
PRODUCT CATLOG View
Port Pendra Road, BILASPUR
Payment Terms T/T
Delivery Time One Week
Packaging Details Packed in International Standard Packaging

Click to view more

Preferred Buyer From

Location Anywhere in India

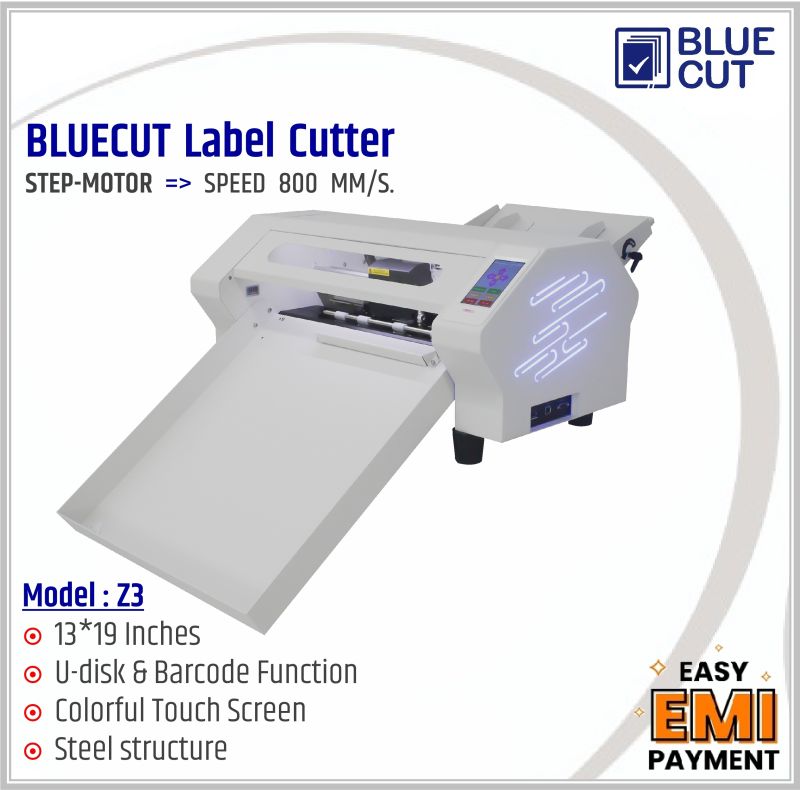

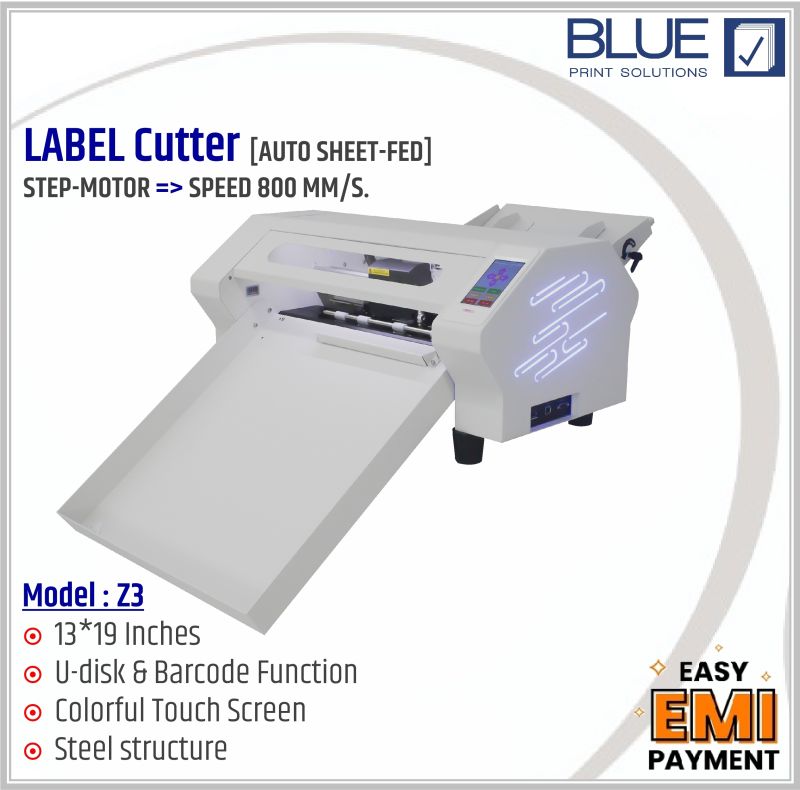

BLUECUT STEP Motor Label Cutter which can feed different material continuously, having big paper tray and can repeat any cutting file 2000 times continuously. Smart Material Sensor in Feeding Tray. Automatic Contour Cutting function available which can cut any shpe of printed lables. High precision steel axis to ensure accuracy cutting. It have produce Cutting Force of 10-1000g (Kiss cut and Full cut). Three interfaces USB / USB / Serial port is available which support work with Flash Drive directly. U disk for offline working, no need to bring the computer everywhere or use long USB cables.

Read More...


Yes! I am interested


INR 2.15 Lac - 2.20 Lac / piece

1 Unit (MOQ)

Business Type Supplier, Trader, Distributor, Importer
Model Number E6 PLUS
Max Cutting Speed 1500mm/s SERVO System
Max Cutting Area 483*330mm (13*19 Inches)
Drive Motor X&Y DC High Power SERVO Motor
Media Hold Method Double pinch roller, Vaccum suction
Main Board High speed CPU, Optimal SERVO system
Nos of Cutting Head Single Cutting Head
Camera positioning speed 4s
Accuracy 0.025mm.
Cutting Force 5-1000g (Adjustable)
Interface USB/Udisk/Eathernetport/Wifi (Optional)
Control Pannel 4.3inch Full Colourful Touch Screen
Media way Auto feeder
Cutting Media Types Self adhesive, Cardboard, Coated paper, PVC, PET, Kraft paper etc.
Cutting Method Kiss cut, Full cut, Dotted cut, Creasing and drawing
Gross weight 66kg.
Package Dimension 880*720*580mm.
Working Power 150 W
PRODUCT CATLOG View
Product Code E6PLUS
Port Pendra Road, Bilaspur
Payment Terms T/T
Delivery Time One Week
Packaging Details Packed in international standard packaging

Click to view more

Preferred Buyer From

Location Anywhere in India

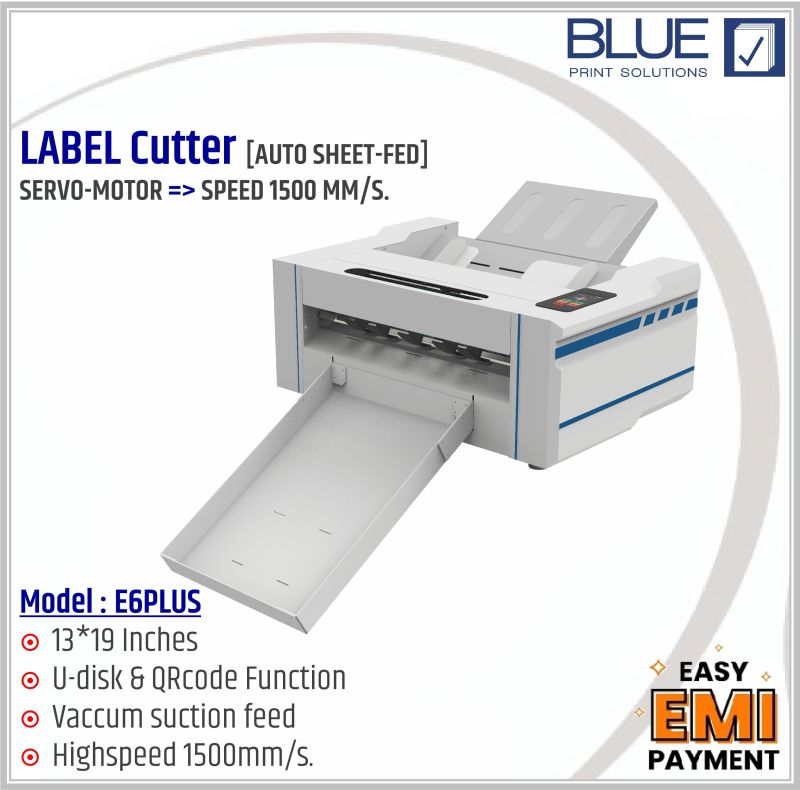

BLUECUT SERVO MOTOR STICKER HALF CUTTING MACHINE (LABEL CUTTER) comes with double pinch roller & vaccum suction for holding sheet, ensure the good cutting performance with twice cutting speed. It's have QR code working system for positioning, cut a mixed different files continuously. The 4.3inches full colourful touch screen which is smooth clock performance. The CCD camera scanning makes it more sensitive for QR code and mark positioning. Just a one key to calibrate the offset of camera. It can autofeed sheet in different size continously A4, A3, A3 Plus and customised size. You can put 200 sheets at a time in paper feeding tray. One cutting file can repeat 2000 times continuously with repeat function. It can be connect with the PC with Ethernet Port, USB, Udisk, WiFi. Heavy duty rubber feeding roller with big power which can feed thicker sheet smoothly. Adobe illustrator, Coreldraw plug-in, Signmaster, Surecut software are compatible software.

Read More...


Yes! I am interested

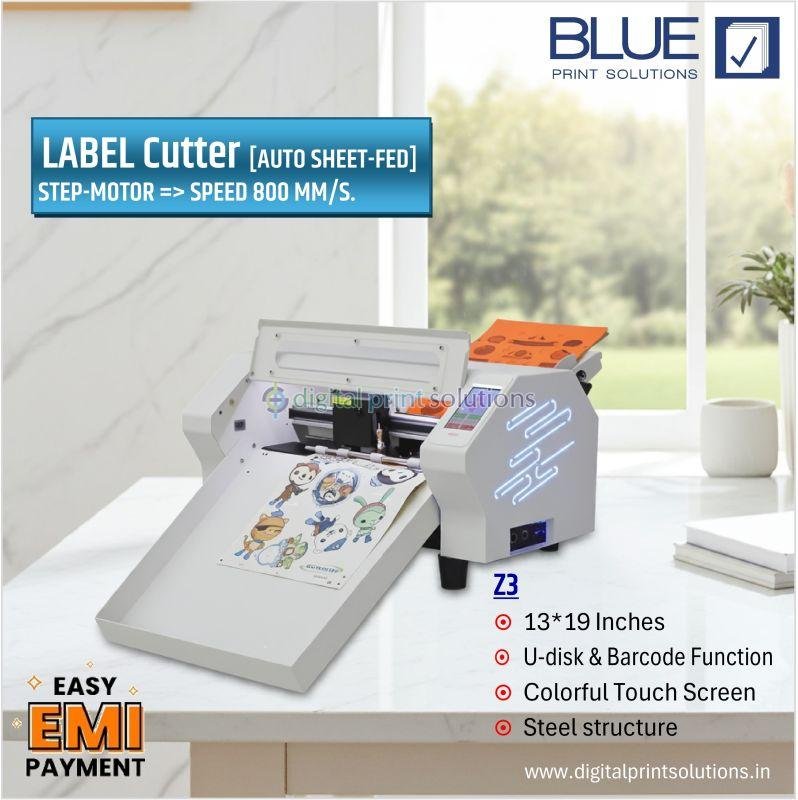

INR 1.30 Lac - 1.35 Lac / piece

1 piece (MOQ)

Business Type Supplier, Retailer, Wholesaler, Trader, Distributor
Material Heavyduty
Automatic Grade Automatic
Brand Name Bluecut
Model Name/Number Z3
Maximum Cutting Speed 1000mm/s
Maximum Cutting Area 483*329mm
Cutting Force 10-1000g (Adjustable)
Type Sticker Sheet, Sheet Label Cutter
Interface USB / U-disk / Serial-port
Control Panel 4.3inch Full Colourful Touchscreen
Cutting Type Half & Full Cut
Feed Tray Capacity 100 Sheets
Maximum Repeat of Files 2000 times
Main Board 32-big ARM7 CPU, 128MB, High speed catch memory
Media way Auto Feed
PRODUCT CATLOG View
Product Code Z3
Port Pendra Road, Bilaspur
Delivery Time One week
Packaging Details Packed in carton and pallet

Click to view more

Preferred Buyer From

Location Anywhere in India

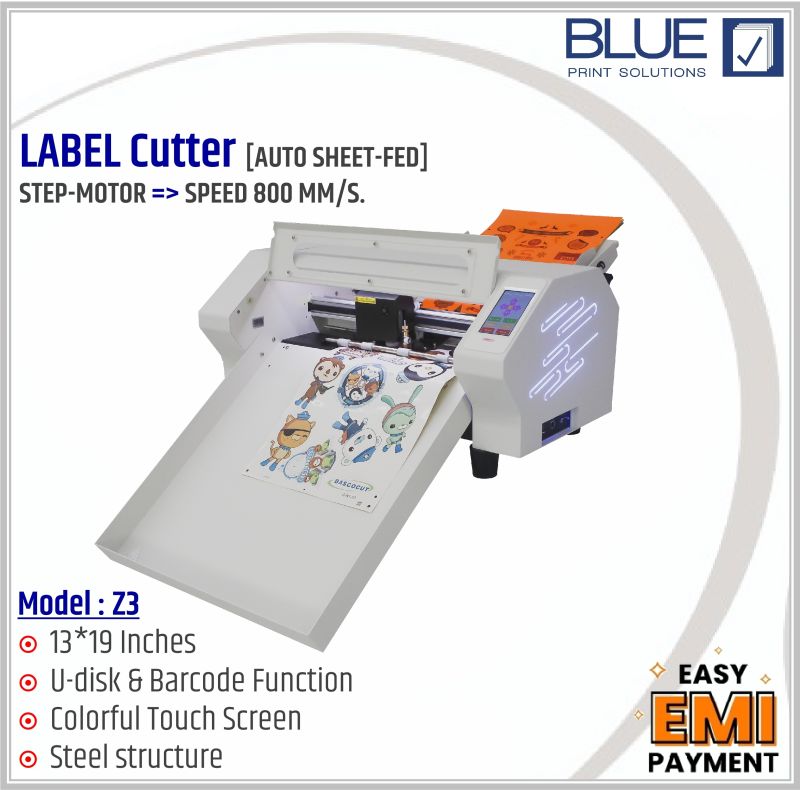

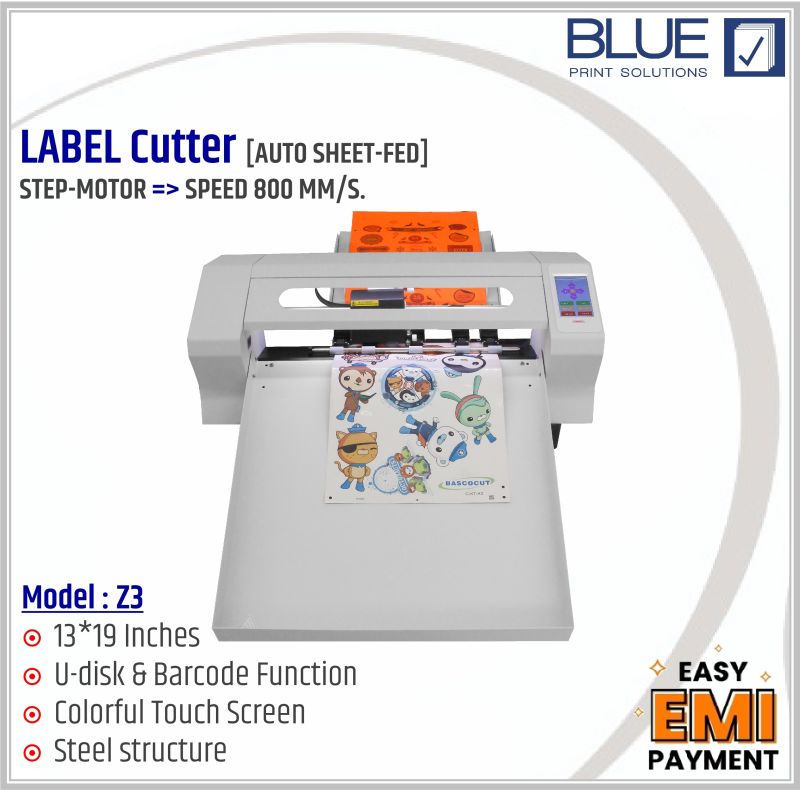

 Introducing BLUECUT Auto sheet-fed Sticker Half & Full Cutting Machine which can feed different material continuously, having big paper tray and can repeat any cutting file 2000 times continuously. Smart Material Sensor in Feeding Tray. Automatic Contour Cutting function available which can cut any shpe of printed lables. High precision steel axis to ensure accuracy cutting. It have produce Cutting Force of 10-1000g (Kiss cut and Full cut). Three interfaces USB / USB / Serial port is available which support work with Flash Drive directly. U disk for offline working, no need to bring the computer everywhere or use long USB cables.



Read More...
